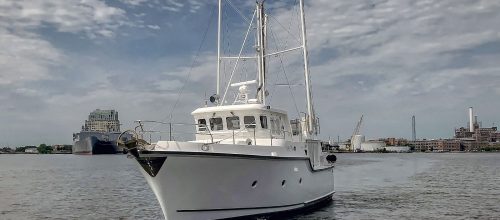

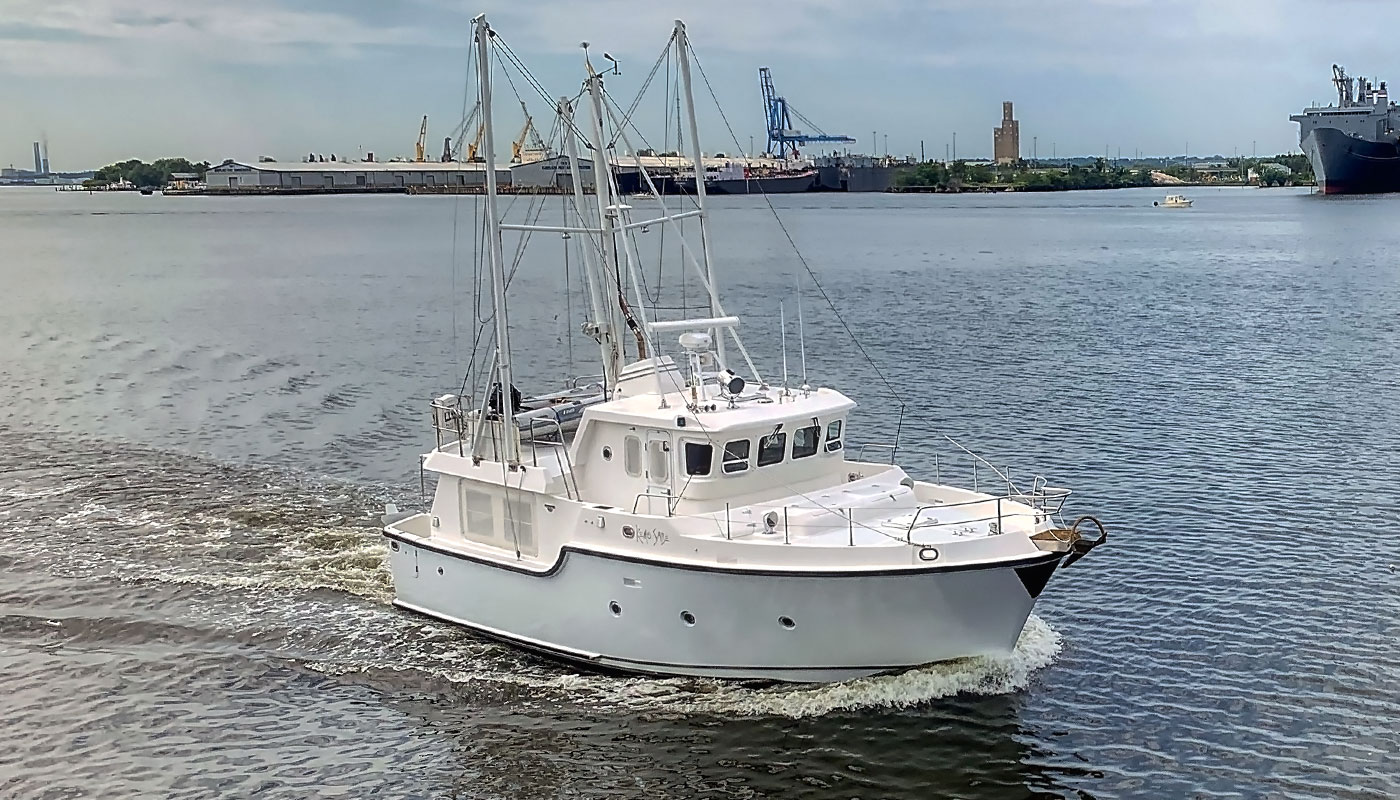

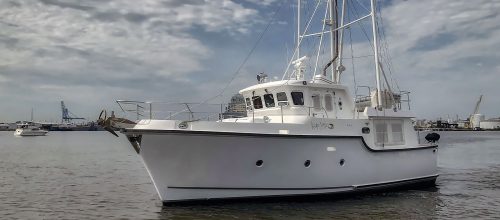

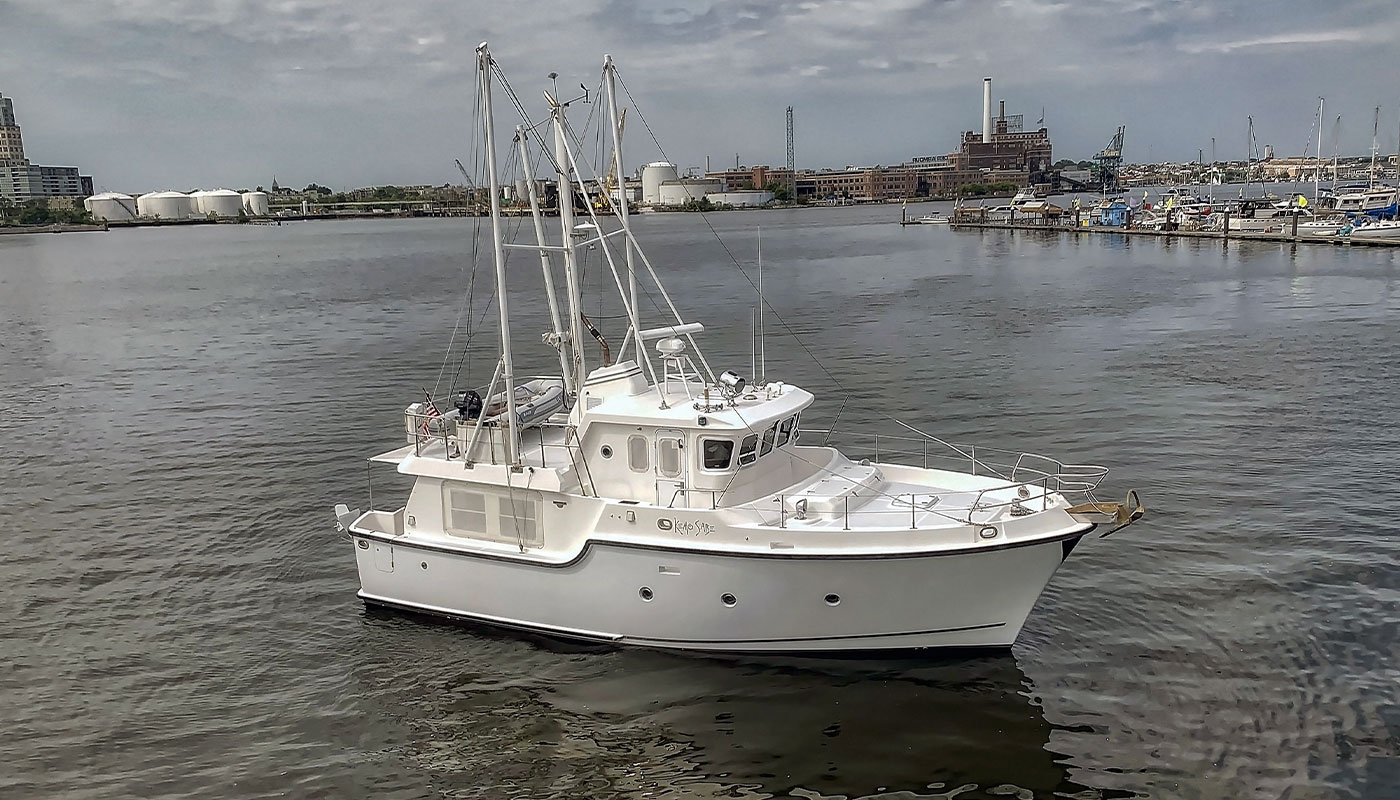

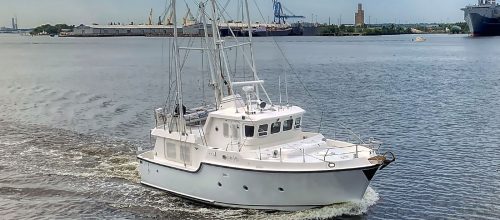

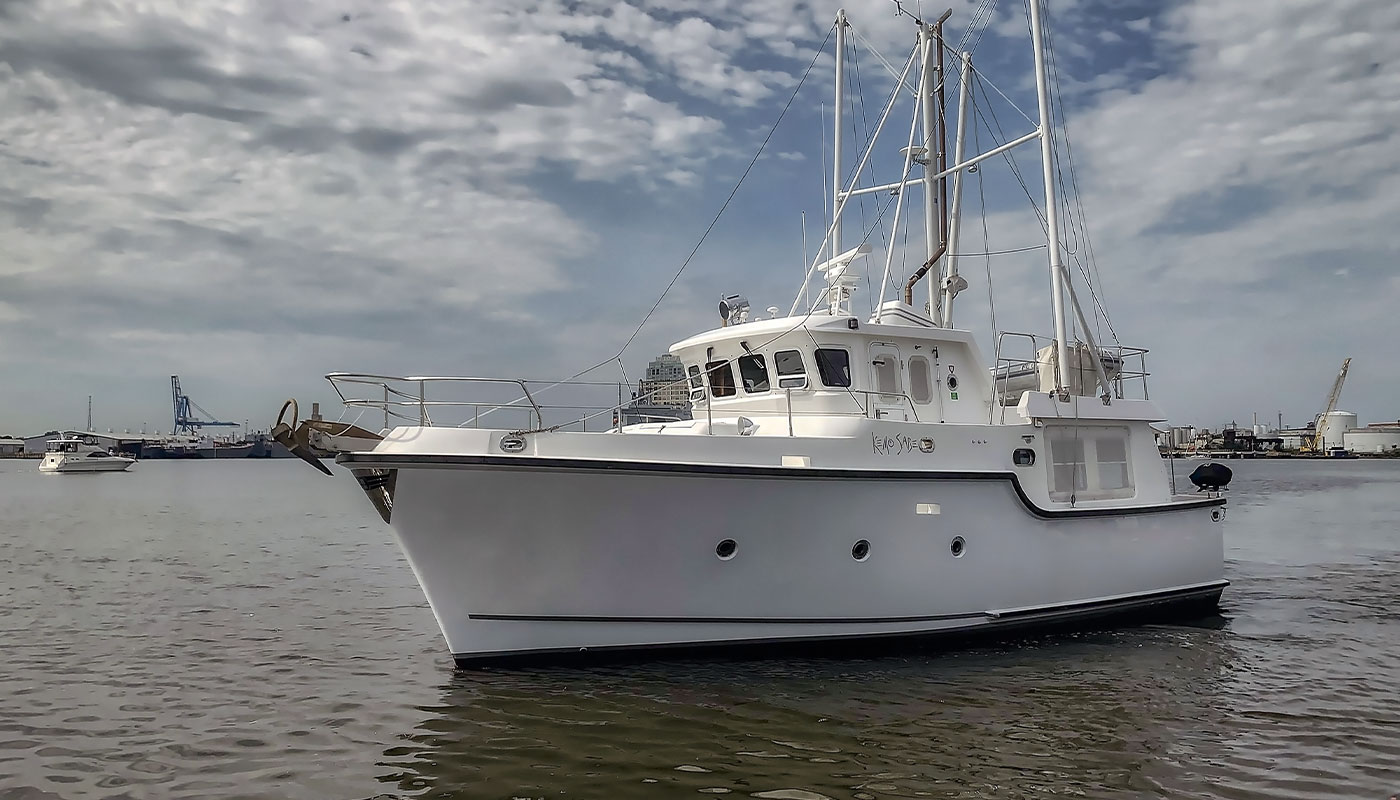

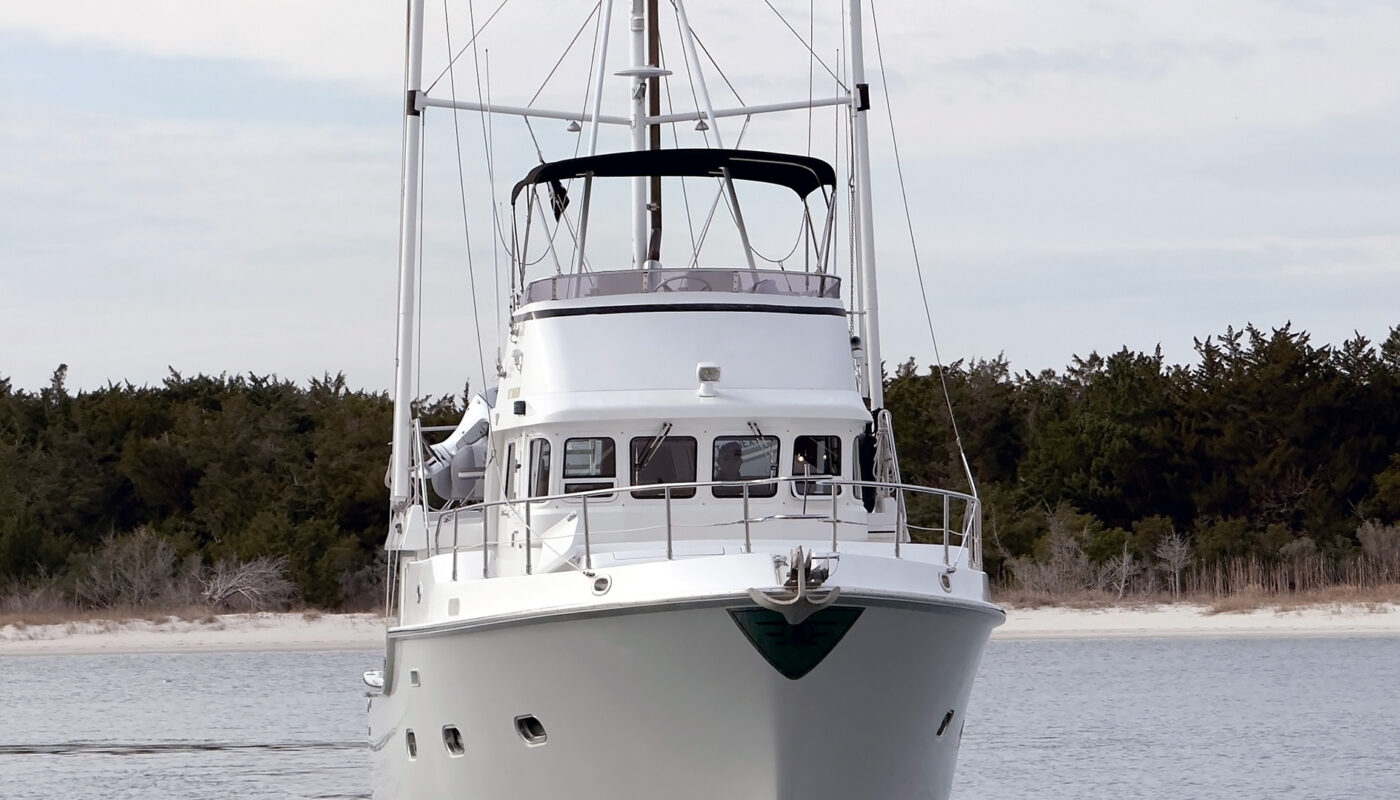

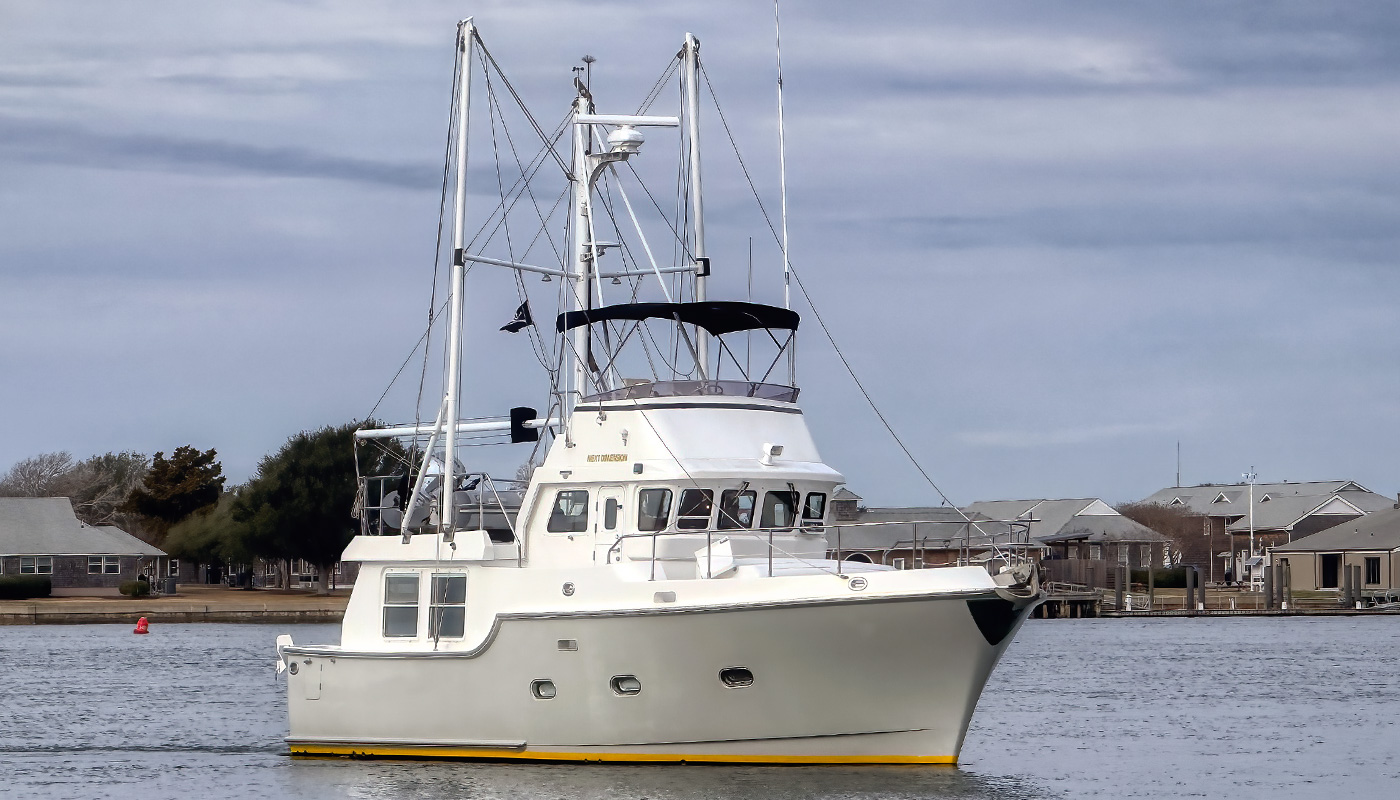

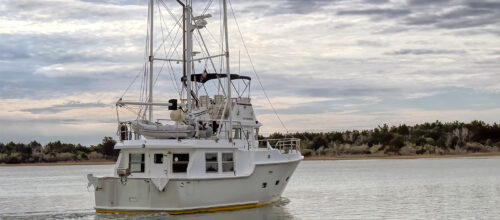

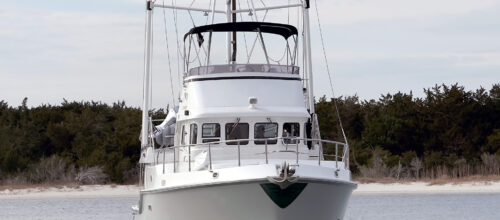

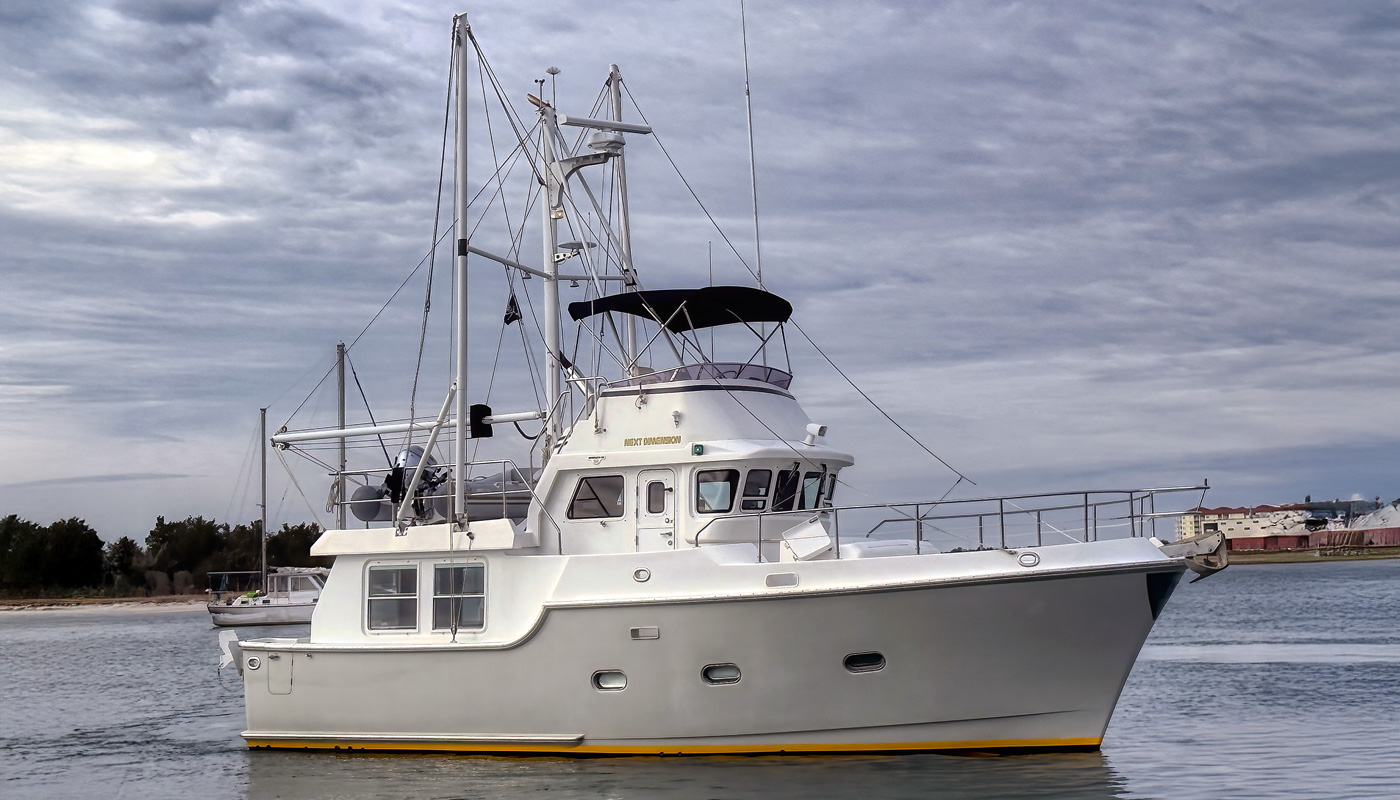

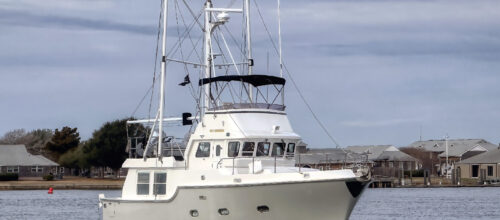

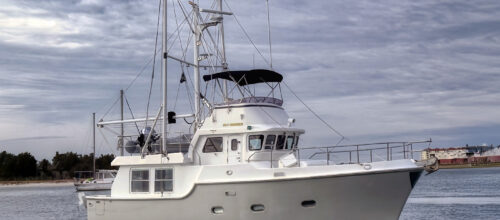

Next Dimension is in exceptional condition, well maintained with low hours and light use. She is hull 56 in this popular Nordhavn 40 series.
This design has generous interior accommodations (saloon and galley on the entry level, raised pilothouse and two staterooms with one head on the lower level) and a seakindly ride through the water.
Next Dimension was ordered with the optional fly bridge, which provides an excellent outdoor area above the pilothouse for taking command underway or relaxing when at rest.
The saloon is spacious because it is pushed out on both sides, no wasted space filled with rarely used walking side decks. The entry level merges the saloon into the galley with a set of stairs up to the raised pilothouse or down to the accommodations deck.
The owner stateroom is forward, there is a shared head and shower, and the guest stateroom has two bunk berths.
The engine room is surprisingly spacious, benefitting from the proprietary “maintenance strakes” in the hull mold that provides additional headroom on both sides of the main engine. Systems and equipment are selected and installed for reliability and service ease.
The pilothouse is arranged for optimal operation with good sight lines and easy to reach controls. The flybridge adds a second command station and the tender is mounted on the boat deck, launched by the mast and boom.
For stabilization, she has both paravane outriggers and active fin stabilizers.
The Nordhavn 40 is a full displacement trawler that was designed and built to transit oceans. A sistership completed a 26-week circumnavigation in 2001 (with listing broker Jeff Merrill crewing a leg). The Nordhavn 40 design is the smallest passage maker built by PAE and boasts a 3,000-mile range.
Most Nordhavn 40 owners are “owner operators” who enjoy the reliability of this design and savor time aboard, planning, traveling and resting at anchor.
Next Dimension is a second generation (MK II built in China) Nordhavn 40 – hull 56. When the original California builder faltered at hull 44, PAE/Nordhavn shipped the tooling to the Nordhavn yard in China to continue production stating with hull 45 and differentiated the two versions in this series as Mark I US made, and Mark II China built.
Note: Next Dimension has her CBP-7501 Entry Summary papers. She has remained USCG Documented and US flagged through all three owners. Tariff issues are subject to change and JMYS cannot offer legal advice – please consult with a qualified maritime attorney before purchasing any vessel built outside of the United States.

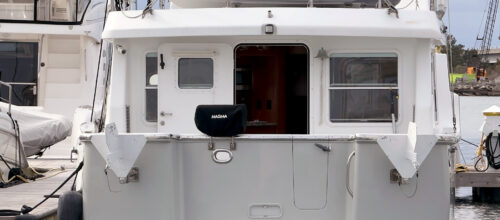

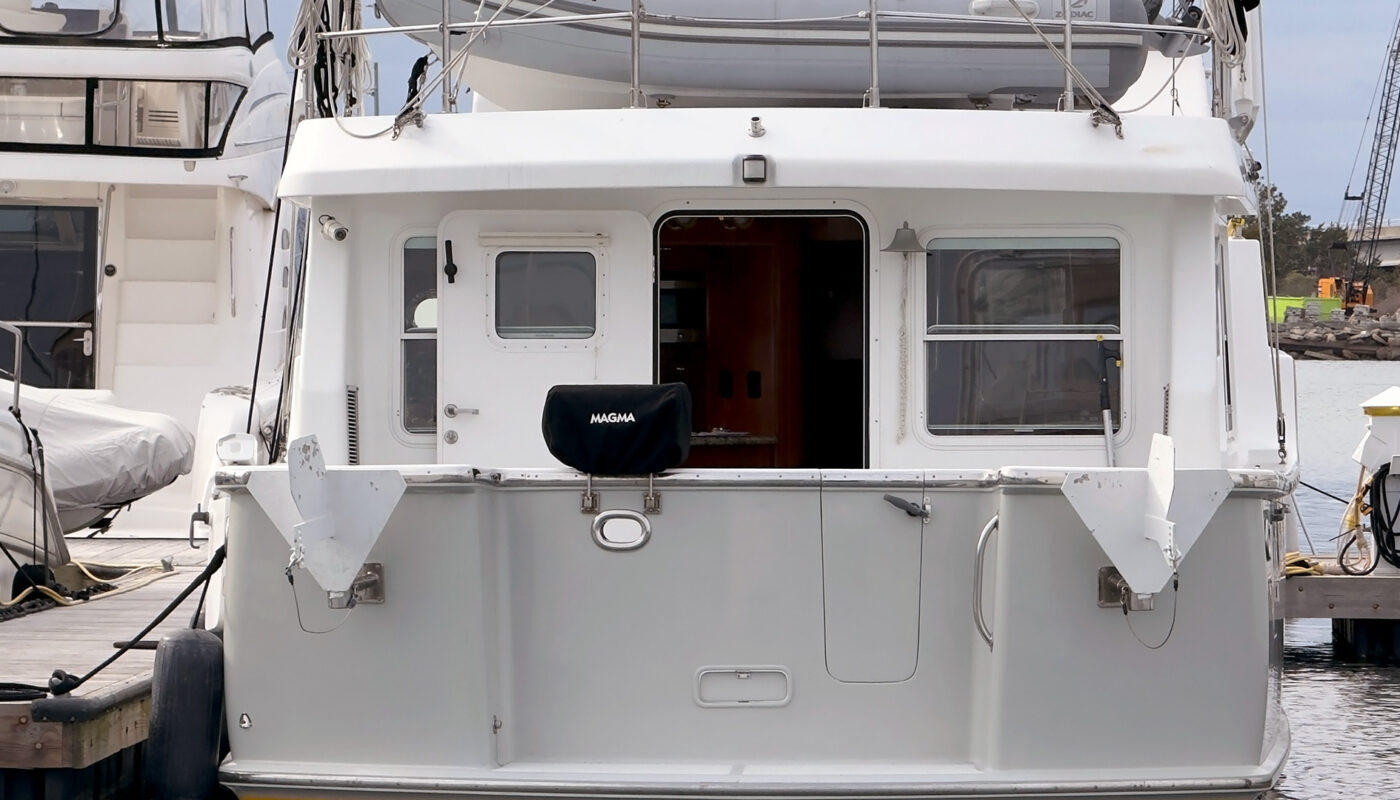

Cockpit:
Lazarette:
Saloon:
Galley:
Pilothouse:
Navigation and Electronics
Guest Stateroom:
Engine and Mechanical:
Head and Shower:
Owner Stateroom:
Deck gear:

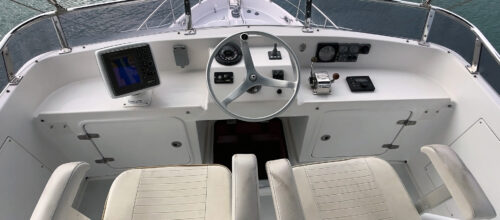

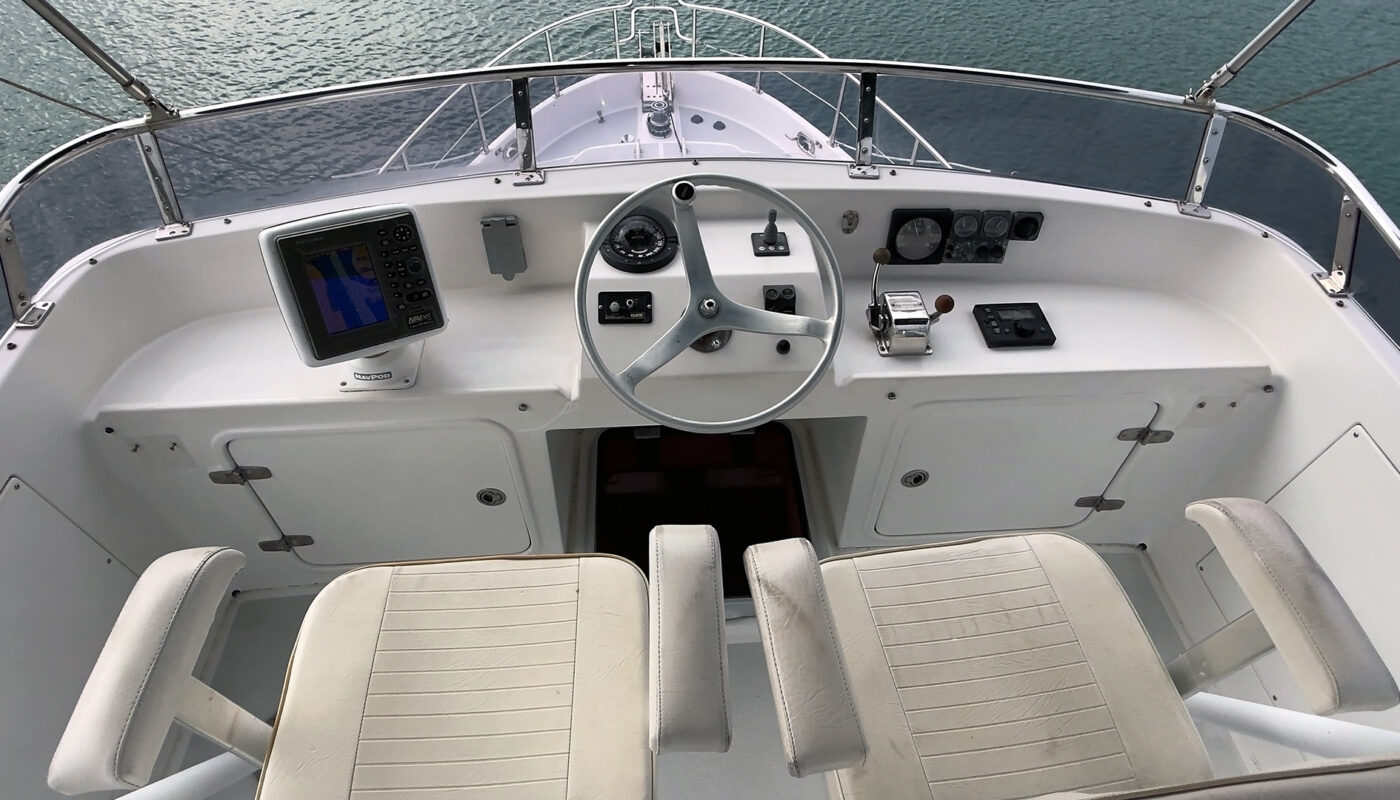

Flybridge:

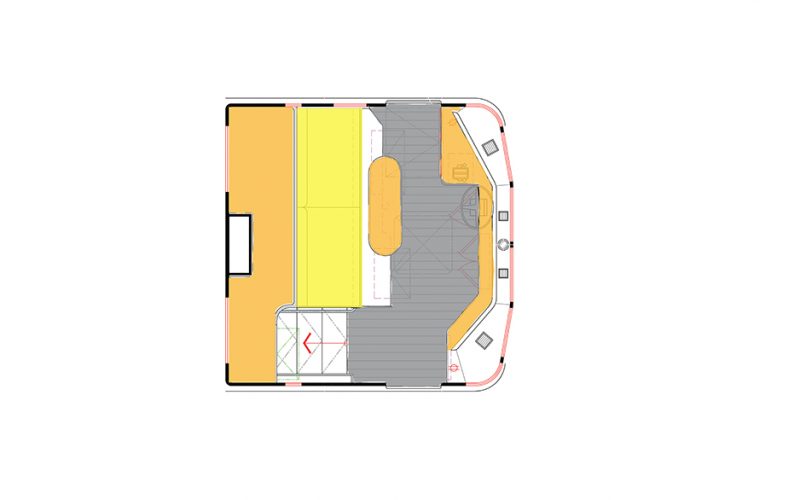

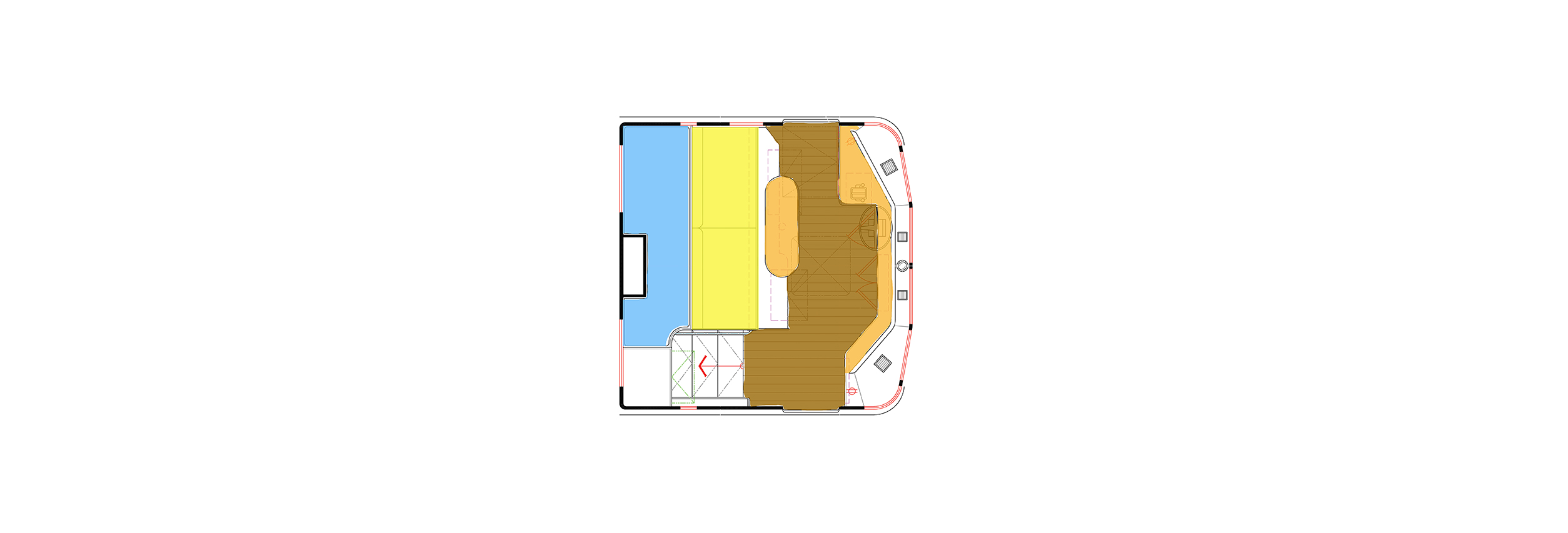

LAYOUT: Raised Pilothouse

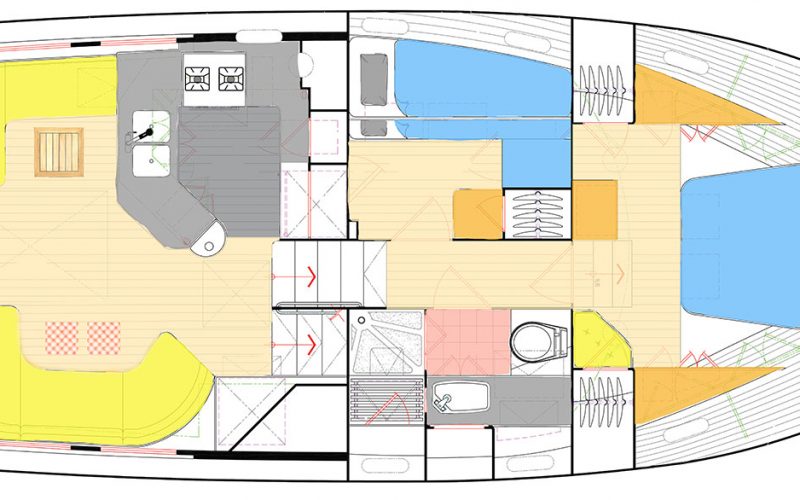

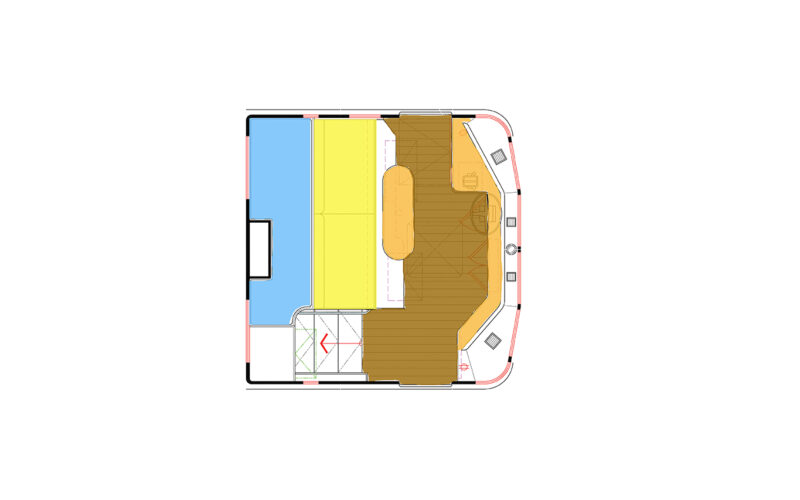

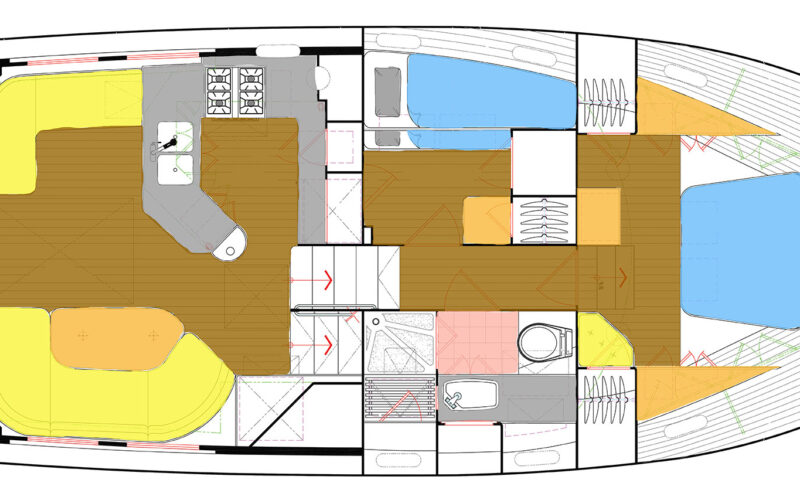

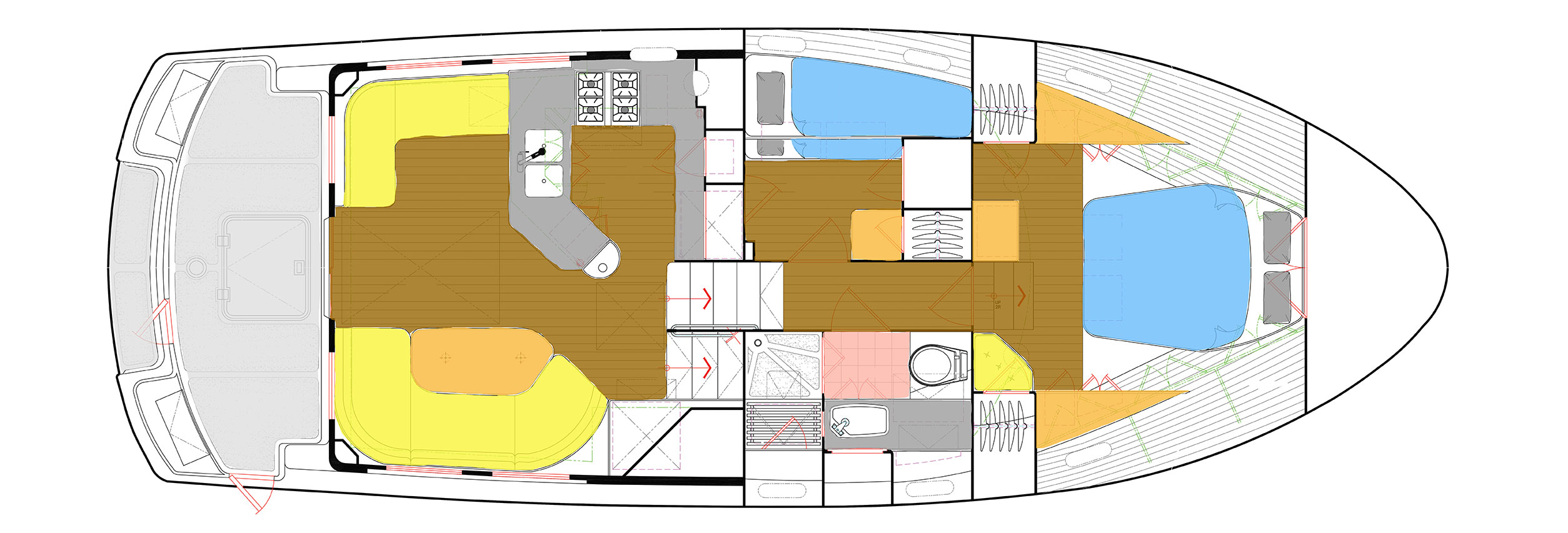

LAYOUT: Main and Lower Deck – Saloon, Galley Head and Staterooms
SPECIFICATIONS:
| SPECIFICATIONS: | |
| YACHT NAME: | Next Dimension |
| BRAND AND MODEL: | Nordhavn 40 MK II |
| TYPE: | Full displacement long range trawler with raised pilothouse and flybridge |
| LOCATION: | Beaufort, NC |
| MODEL YEAR: | 2006 |
| HULL NUMBER: | 56 |
| HULL COLOR: | Gray |
| DECK: | White deck with gray nonskid |
| REGISTRY: | USCG documented with CBP-7501 entry summary document |
| DESIGNER: | Jeff Leishman |
| BUILDER: | Pacific Asian Enterprises – Xiamen, China |
| HULL MATERIAL: | Solid fiberglass |
| DISPLACEMENT: | 50,000 LBS. | 22.68 MT |
| BALLAST: | 4,000 LBS. | 1.82 MT |
| SPEED: | Cruise 7.0 knots @1700 RPM. Top 8 knots @ 2100 RPM. WOT=2400 |
| LOA: | 39’9″ | 12.12 M |
| LWL: | 35’5″ | 10.79 M |
| BEAM: | 14′ 6″| 4.42 M |
| DRAFT: | 4’9″| 1.45 M |
| AIR DRAFT: | Approximately 28’| 8.53 M |
| AB RATIO | 2.3:1 |
| DL RATIO | 380 |
| CP – PRISMATIC COEFFICIENT | 0.6 |
| MAIN ENGINE | Lugger model LP668 130 HP (Hours ~1,375 February 2026) Twin Disc MG5050 3.0:1 transmission | Morse cable controls |
| PROPELLER / SHAFT | 2″ stainless steel shaft | 4-blade 28” bronze propeller | Spurs line cutter |
| MAIN EXHAUST: | Keel cooled, dry stack exhaust |
| WING ENGINE: | Yanmar model 3YM30V 27 HP (Hours ~14 February 2026) Kanzaki KM3 V-drive transmission | Morse cable controls |Martec folding propeller |
| THRUSTER: | Side Power 95T 8 HP 12V bow thruster |
| STABILIZATION: | Wesmar RS600 hydraulic stabilizer system with 6 sq. ft. fins | Paravane outrigger passive stabilizer system |
| ELECTRICAL: | 60 Hertz – US style – 30-amp 120V system |
| SHORE POWER: | 30-amp 120V for house with cord | 30-amp 120V air conditioning with cord |
| GENERATOR: | Northern Lights M753K 8.0 kW generator (Hours ~1,703 February 2026) |
| INVERTER/CHARGER: | Prosine 2.0 2000-watt inverter/charger | Leece-Neville 140-amp house alternator driven by main engine |
| BATTERIES: | (2) Lifeline 8D batteries, (3) Lifeline AGM 4D batteries, (1) Lifeline Group 31 battery. For house bank, electronics and starting |
| INTERIOR LIGHTING: | LED and halogen lighting |
| CLIMATE CONTROL: | Marine Air reverse cycle HVAC: 44,000 BTU (3) compressors |
| MACHINERY EQUIPMENT: | Racor Duplex for main | Walbro fuel transfer pump with Racor filter | Reverso oil change system |
| WINDLASS: | Maxwell VWC-2200 electric anchor windlass with foot pedal controls and remote controls at helms |
| GROUND TACKLE: | 110 LB / 50 KG Bruce anchor with 400’ 3/8″ chain | Fortress FX 37 spare anchor |
| MAST AND BOOM: | Forespar mast and boom| Mast supports main engine exhaust | Paravane outriggers |Boom fitted with electric winches for dinghy and outriggers |
| TENDER AND OUTBOARD: | Zodiac Cadet 310 RIB fiberglass hull 10′ tender (2018) | Honda 15 HP outboard |
| NAV/COM BRANDS: | Furuno | Simrad | Ritchie | Icom | NUC computer running Time Zero |
| ENTERTAINMENT: | Samsung TV in owner stateroom | Samsung TV in saloon with Apple TV| Clarion XMD3 stereo with Bose subwoofer | Sirius XM satellite radio (requires subscription) |
| STATEROOMS: | (2) staterooms: Owner forward, Guest to port |
| BEDDING: | Centerline queen forward (Owner) with custom innerspring mattress| (2) Bunk beds in port guest stateroom | Pilothouse watch berth |
| HEAD: | One: Groco K manual sea water flush (electric button inoperable) |
| SHOWERS: | Two: Stand up in head with door | Cockpit shower |
| HOT WATER: | Whale 11-gallon stainless steel |
| WATER MAKER: | Village Marine Tec – Squirt – SPW (600 GPD) – (pickled, out of service) |
| LAUNDRY: | Splendide 2100XC combination laundry washer/dryer (vented) |
| GALLEY: | Sub Zero refrigerator in galley | Sub Zero freezer with icemaker across galley in saloon | Seaward Princess three-burner propane stove and oven | GE Profile microwave | GE Monogram trash compactor |
| INTERIOR WOOD: | Teak |
| INTERIOR COUNTERS: | Granite counters |
| INTERIOR UPHOLSTERY: | Ultra-leather – Almond color |
| INTERIOR FLOORING: | Teak |
| BILGE PUMPS: | (1) Jabsco diaphragm pump | (1) Rule electric bilge pump | (1) Edson manual |
| TANKAGE: (approx.) | |
| FUEL: | 920 gallons | 3,482 liters (Two fiberglass tanks) |
| HOLDING BLACK: | 68 gallons | 257.5 liters (One fiberglass tank) |
| FRESH WATER: | 220 gallons | 833 liters (One fiberglass, Two plastic tanks) |
| SAFETY: | USCG safety package| SeaFire fixed fire suppression system in engine room | CO2 detectors | Engine room high water bilge alarm | (Life raft out of inspection, will be removed – but shown in photos) |
| PHOTO DATE: | Most photos taken January 2026 |
| Note: All information is believed accurate but should be verified. | |
Service Notes (Additional records available upon request)
Notable Updates:
2015:
2016:
2025:
You can read all about the cruising accomplishments of the Nordhavn 40 online and by studying magazine reviews and owner blogs. Most of the detailed photos of Next Dimension were taken in January 2026.
